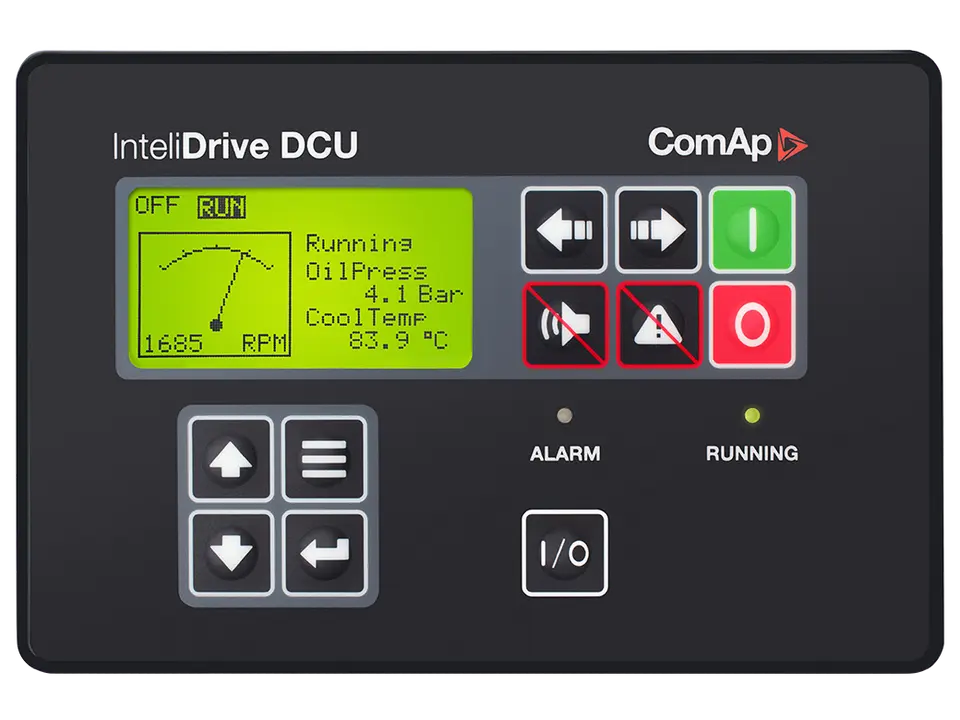

InteliDrive DCU Industrial

InteliDrive DCU Industrial

Order code: ID2DCUINBAA, ID2DCUINBLA

This product is obsolete, availability might be limited.

Engine controller for land-based applications powered by engine driven compressors and pumps.

InteliDrive DCU Industrial Datasheet

English (8 Mar 2023)

Manuals

10 files

English (12 Apr 2023)

English (12 May 2024)

English (2 Oct 2023)

English (12 May 2024)

English (19 Sep 2023)

English (3 Jul 2023)

English (14 Jun 2023)

English (8 Mar 2023)

English (7 Mar 2023)

English (18 May 2023)

Software

5 files

English (4 Dec 2024)

English (12 May 2024)

English (13 Jun 2023)

English (30 Aug 2023)

English (18 May 2023)

EU_DoC_EU-C09-V01-EN_ID-DCU

English (10 Sep 2024)

English (8 Mar 2023)

Show resource hub for this product

Overview
Related products
Training

Overview
Related products
Training

The InteliDrive DCU Industrial offers:

Control, monitoring and protection for both mechanical and electronic diesel/gas engines as well as peripheral equipment in one unit
Support of engines with EFI (ECU) - CAN/J1939 or Cummins ModbusEvent driven
History records
Speed control
Engine measurement from sensors or via J193914 binary inputs, 14 binary outputs, 8 analog inputs
Over 100 binary inputs and outputs available via additional modules
3-level password protection
Remote control and monitoring via analogue/GSM modem, SMS or Internet
Configurable PLC functions (Logical, Mathematical, Comparators, Analog switch, PID loops, Counters, Timers, Delay and others)
Load sharing for propulsion engines
Integrated clutch control
Running hours meter, number of starts counter
RS232, Modem, Modbus, Internet communication
Push buttons for simple control, lamp test
Front panel sealed to IP65
EN, UL, CSA, NFPA certifications

Accessories

ID-COM

CAN Communication extension module for ID-DCU controllers.

Inteli AIN8TC

Peripheral module, extension module - 8 thermocouples inputs.

Inteli IO8/8

Binary Inputs/Outputs and analogue Outputs module.

IGS-PTM

Analogue/binary Input/Output module.

I-CR

CAN repeater module for inter-controller CAN, helping to increase controller communication reliability on sites with large footprint.

I-CB/Deutz TEME

ECU communication interface for MWM (former Deutz) engines equipped with TEMevolution ECUs. This product supports ComAp’s InteliGen NT, InteliSys NT and Drive controllers to control and monitor MWM engines.

I-RB8

8-Relay board for ComAp controllers.

InteliVision 12Touch

Intuitif, facile à utiliser et simple à configurer, l'InteliVision 12Touch est un panneau opérateur industriel équipé d'un écran tactile couleur de 12,1 pouces. Compatible avec la majorité des contrôleurs ComAp, il offre un aperçu visuel complet pour surveiller et contrôler des groupes électrogènes individuels pour diverses applications.

I-AOUT8

Analogue output module.

IS-AIN8

Analogue input module.

InteliVision 13Touch

InteliVision 13Touch est un panel PC de 13,3 pouces de haute qualité et facile à utiliser, certifié marine, avec un support multi-contrôleurs et des boutons de changement de luminosité sur sa face avant. Conçu pour surveiller et contrôler simultanément jusqu'à quatre contrôleurs, l'InteliVision 13Touch est flexible et simple à configurer pour répondre à vos besoins en matière de surveillance.

ID-SCM1

Speed Control Module.

Inteli AIN8

Module with 8 analogue Input channels and 1 RPM/Impulse Input.

IS-BIN16/8

Binary Input/Output module.

IGL-RA15

Remote annunciator.

I-CB/CAT GAS

ECU serial communication interface for Caterpillar Gas engines, equipped with EMCP2 controller and CCM or PL1000 communication module. This product supports ComAp’s InteliGen NT, InteliSys NT and Drive controllers to control and monitor Caterpillar’s Gas engines.

I-CR-R

CAN redundancy module for inter-controller CAN, helping to increase controller communication reliability on sites with large footprint.

InteliVision 5

InteliVision 5 is an easy-to-use industrial operator panel with a colour screen for monitoring of single gen-set for various applications. This robust and intuitive plug&play solution provides comprehensive visual overview of all engine data, monitoring information and trend history.

InteliVision 5 CAN Backlit

InteliVision 5 CAN Backlit is an easy-to-use display for marine applications. Equipped with a with 5.7” colour screen and backlit keyboard, this intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions. This product has the Germanischer Lloyd MARINE certification approval.

Inteli AIO9/1

Analogue Input/Output module.

I-CB/CAT DIESEL

ECU serial communication interface for Caterpillar Diesel engines equipped with EMCP2 controller and CCM or PL1000 communication module. This product supports ComAp’s InteliGen NT, InteliSys NT and Drive controllers to control and monitor Caterpillar Diesel engines.

I-CB/MTU

ECU communication interface for MTU engines with ADEC and MDEC ECUs.

InteliVision 8 Marine

InteliVision 8 Marine est un panneau de commande industriel équipé d'un écran couleur de 8 pouces, certifié pour une utilisation dans l'industrie maritime afin de prendre en charge la surveillance et le contrôle des opérations de groupes électrogènes individuels. Solution plug&play simple et facile à utiliser, elle fournit un aperçu complet de toutes les données du moteur, des informations de surveillance et de l'historique des tendances. L'InteliVision 8 Marine est destiné aux contrôleurs ComAp InteliGen NT, InteSys NT et InteliDriv

InteliVision 12Touch OEM

Intuitif, facile à utiliser et simple à configurer, l'InteliVision 12Touch OEM est un panneau de commande industriel certifié pour la marine, équipé d'un écran couleur tactile de 12,1 pouces. Compatible avec la majorité des contrôleurs ComAp, il offre une vue d'ensemble complète pour surveiller et contrôler plusieurs groupes électrogènes et moteurs pour diverses applications.

InternetBridge-NT 4G

Communication module for internet connection to one or more controllers. This module enables remote communication for asset monitoring via both wired and wireless connection.

ID-SCM

Speed control module.

I-RB16

16 Relay board.

InteliVision 5 CAN

InteliVision 5 CAN is an easy-to-use industrial operator panel equipped with 5,7” colour screen for monitoring of single gen-sets for various applications. This intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions.

InteliVision 8

InteliVision 8, panneau de commande industriel équipé d'un écran couleur de 8 pouces, est conçu pour faciliter la surveillance et le contrôle des opérations d'un seul groupe électrogène pour diverses applications. Il s'agit d'une solution plug&play simple et facile à utiliser, qui offre une vue d'ensemble de toutes les données du moteur, des informations de surveillance et de l'historique des tendances. L'InteliVision 8 est destiné à la famille de contrôleurs ComAp InteliGen NT, InteSys NT, InteliMains et InteliDrive.

Alternative products

InteliDrive DCU Marine

The InteliDrive DCU Marine is a reliable engine controller developed specifically for Marine engines. Recommended for marine propulsion and auxiliary generator engine management, the InteliDrive DCU Marine will enable you to control and protect your diesel engine, on-site or remotely. The controller is compliant with globally recognised certifications and has a seamless connection to ComAp's cloud-based services to ensure smooth operations of your engine.

InteliDrive IPC

Developed specifically for pump control, the InteliDrive IPC controller combines reliable diesel or gas engine control and protection with pump set functionality that is easy to setup and operate. The controller is an excellent fit for pumping applications, and it has a seamless connection to ComAp's cloud-based services, offering remote monitoring of your devices anytime, anywhere.

InteliDrive FLX Lite

The InteliDrive Lite is a reliable engine controller that will protect and ensure stable control of your diesel or gas engine in accordance with today’s demanding conditions.This controller is suited for pump or compression control. It has a seamless connection to ComAp’s cloud-based services, offering remote monitoring of your devices anytime, anywhere.

InteliDrive Fire Pump

Engine controller designed for diesel-driven fire pump applications.

InteliDrive EM

Engine controller for electric asynchronous motors.
