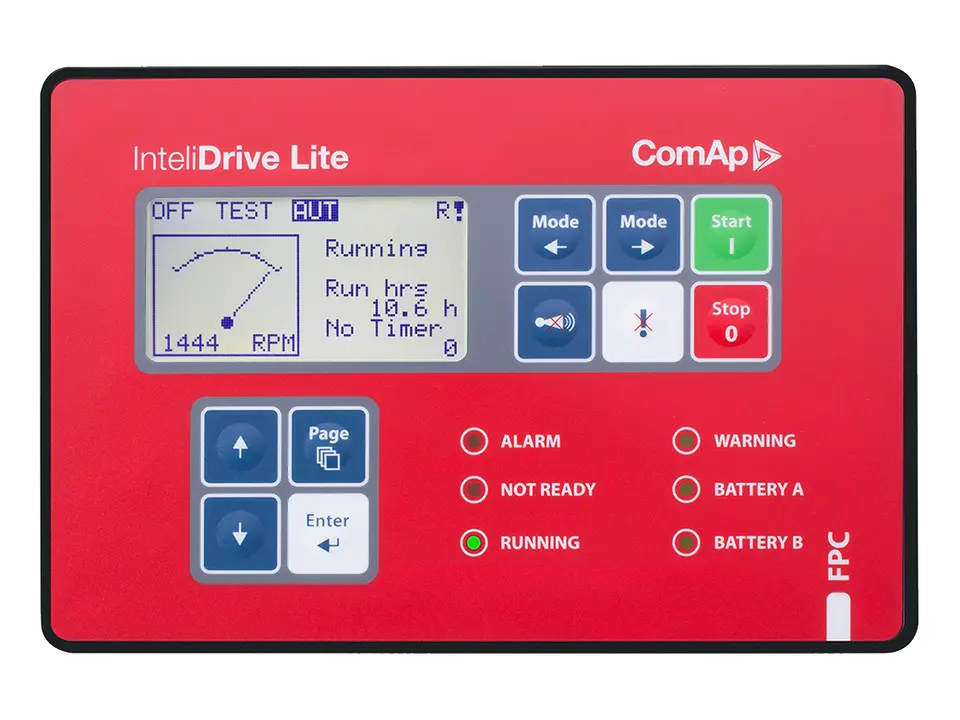

InteliDrive Fire Pump

InteliDrive Fire Pump

Order code: ID-FLX FPC

This product is obsolete, availability might be limited.

Engine controller designed for diesel-driven fire pump applications.

InteliDrive-Lite-FPC-Datasheet

English (27 Jan 2023)

Manuals

11 files

English (12 May 2024)

English (25 Jan 2023)

English (7 Mar 2023)

English (27 Jan 2023)

English (25 Jan 2023)

English (20 Oct 2023)

English (25 Jan 2023)

Product Guide - Drive Power Controllers

English (25 Jan 2023)

Software

5 files

English (12 May 2024)

English (20 Jul 2023)

English (20 Oct 2023)

English (24 Feb 2023)

Certifications

2 files

CE certificate

English (11 Sep 2024)

EU_DoC_EU-C10-V01-EN_ID-FLX

English (9 Oct 2024)

English (25 Jan 2023)

CAD drawings

2 files

English (25 Jan 2023)

Show resource hub for this product

Overview
Related products
Training

Overview
Related products
Training

The InteliDrive Fire Pump offers:

Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard
Automatic and manual starting sequence based on two batteries according to NFPA 20 standard
Support of engines equipped with Electronic Control Unit (ECU) - J1939 or Cummins Modbus interface
Analog gauge (VDO, Datcon) outputs – operator friendly
Engine speed control
3 configurable analog inputs + 2 analog inputs of battery voltage measurement
7 configurable binary inputs and outputs 6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)
Selectable protections alarm/shutdown1 level of password protection
USB, RS485/RS232/Modem/Modbus communication
Automatic SMS on alarm
On-line control and monitoring over web pages (embedded web server) via IB-Lite2 languages (user changeable)
Real time clock and event history log
Push buttons for simple control, lamp test
Front panel sealed to IP65
Based on the NFPA20 standards
EN certification
Comparator with hysteresis regulation
