Case Study

Control System Retrofit for a Hydropower Plant in Ljubljana, Slovenia

9 Dec 2024

5 min read

ComAp partnered with Electrical s.p. in Ljubljana, Slovenia, to retrofit a hydropower plant’s control system with ComAp’s latest solution for power generation control. This upgrade aimed to improve the reliability and efficiency of the plant and enable it to meet the requirements of modern power production.

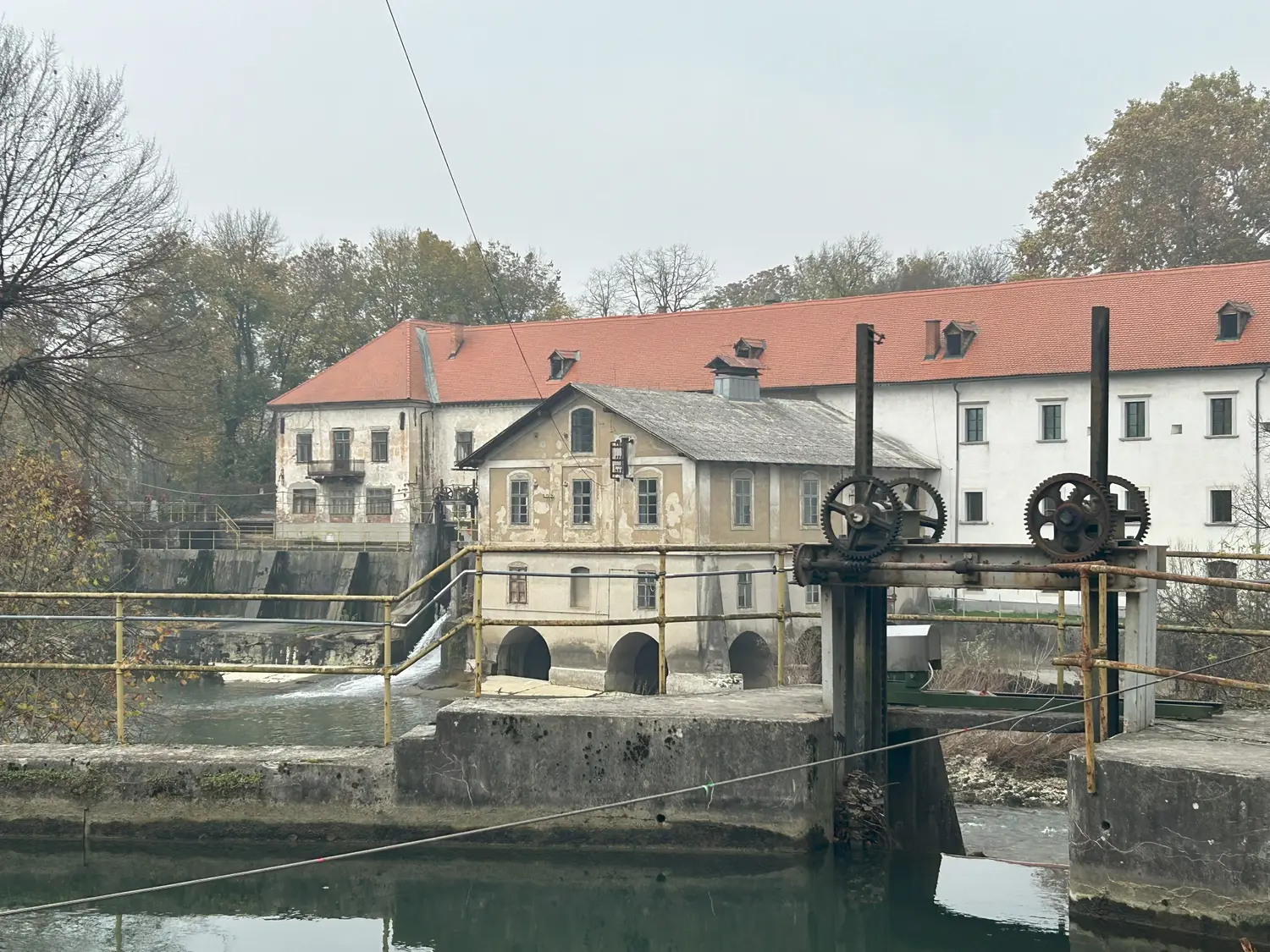

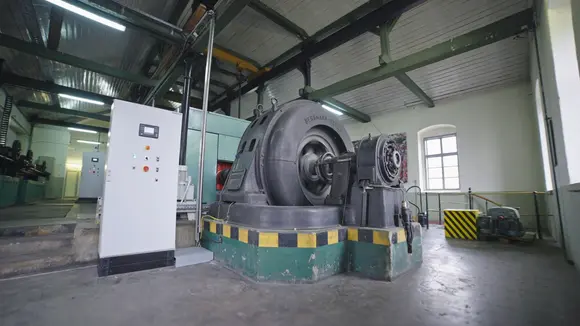

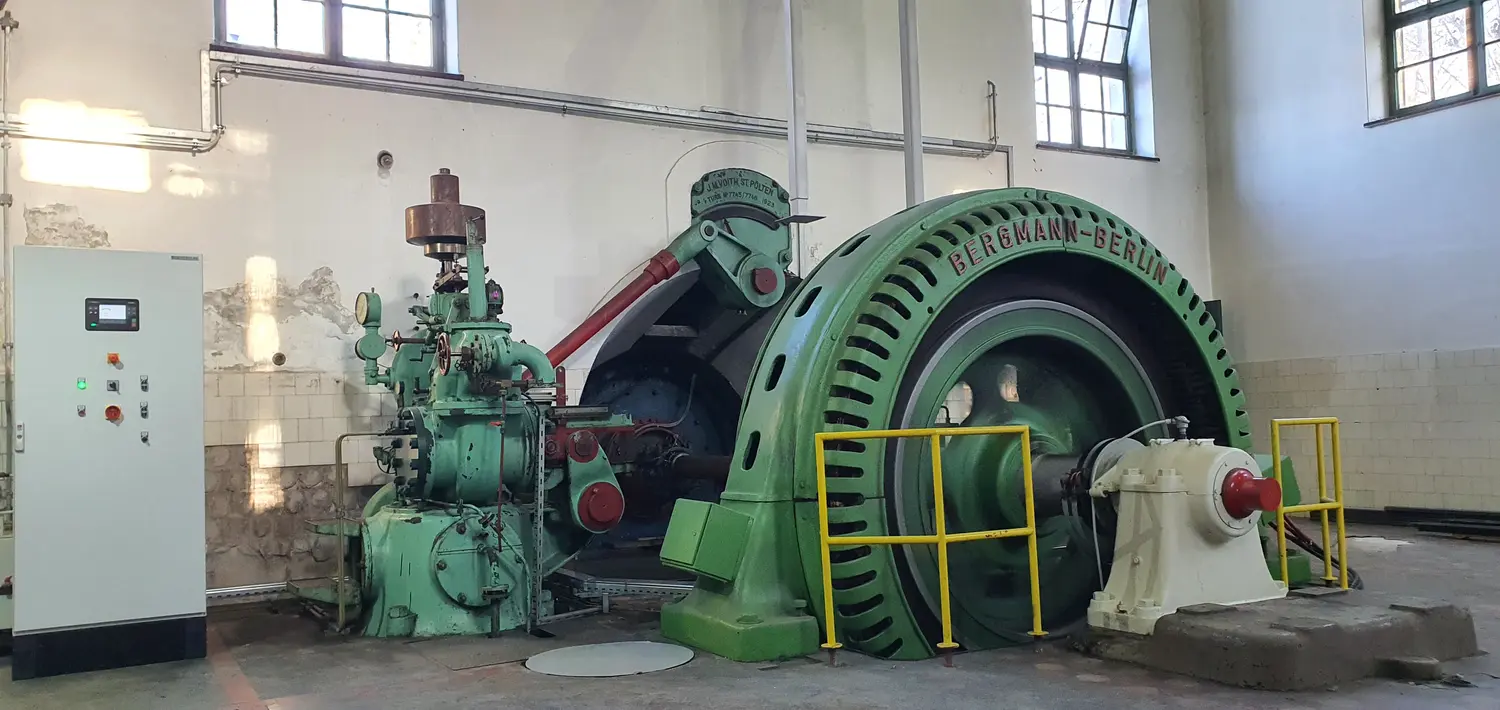

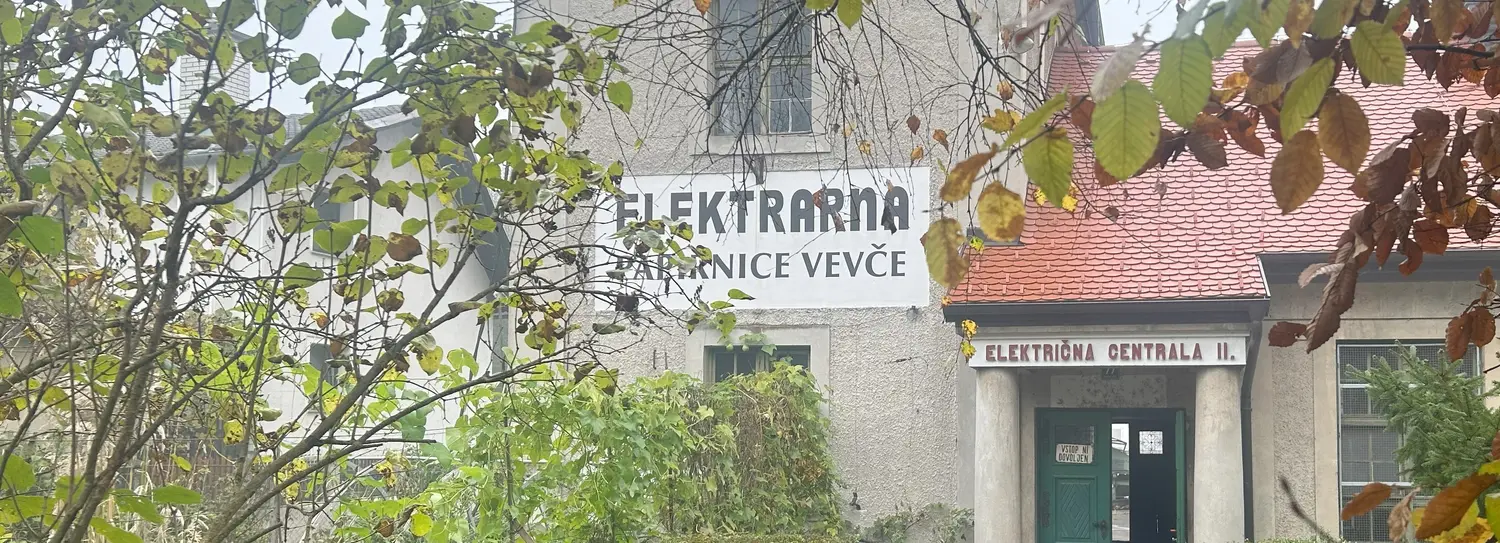

The Fuzine Hydropower Plant, situated on the Ljubljanica River, has been in operation for more than 120 years and houses three water turbines that produce 2,200 kW of electrical energy for the nearby Vevce paper factory. To comply with new grid regulations and to have a modernised, automated control system, the Fuzine power plant decided to upgrade it to one capable of meeting current power demands.

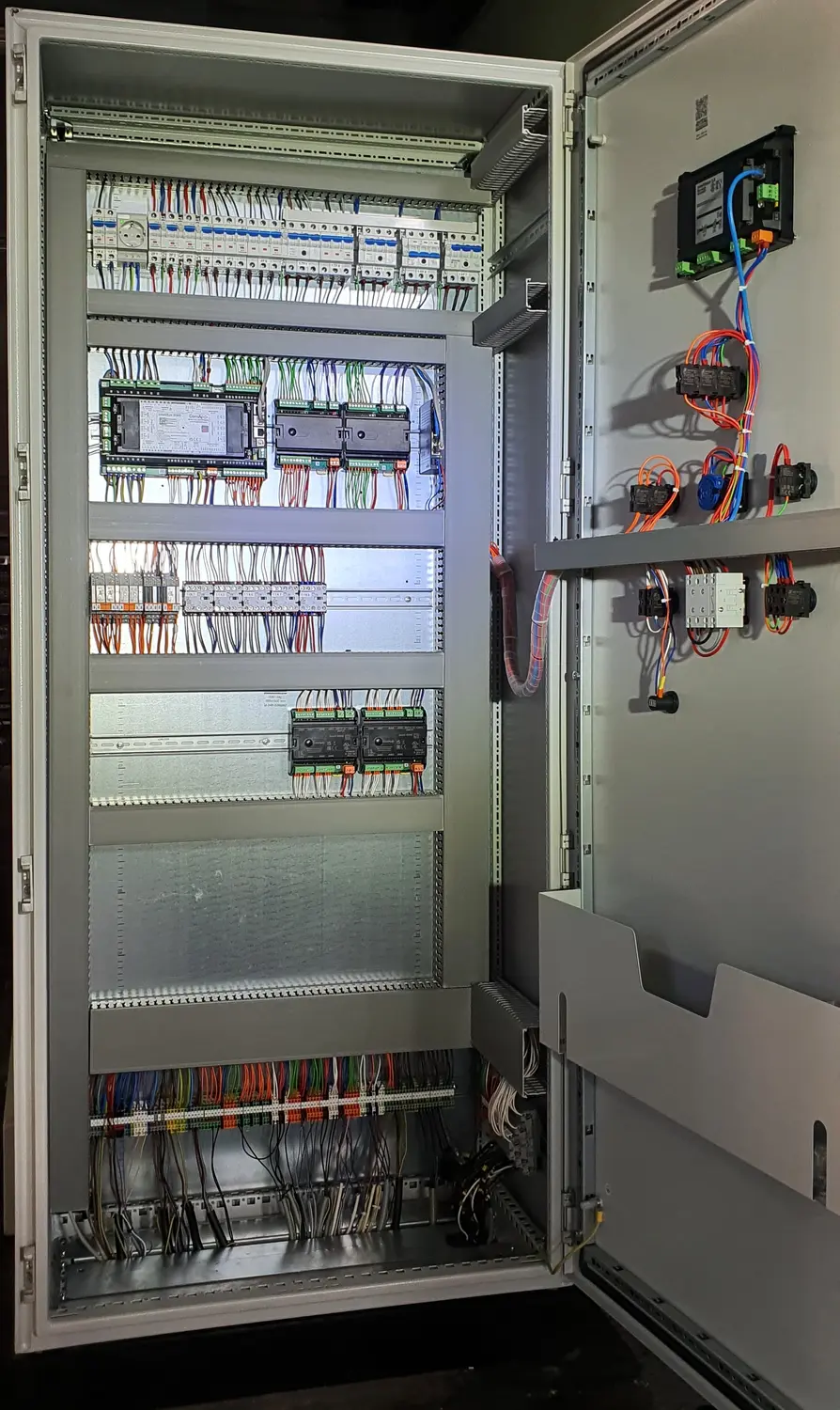

Electrical s.p., with the support of ComAp, implemented a new control system operated by ComAp’s InteliSys 2000 controller for advanced power generation. The InteliSys 2000 provides detailed and precise control of the generators and turbines.

The whole control of the electrical part (measurement, protections, synchronisation, breaker control, P-Q management, Grid codes, etc.) is already prepared in the control unit. It only requires PLC programming for the turbine control part, which might be a bit different for every hydropower plant.

With all the prepared functional blocks, sequences and drag-and-drop PLC and all the values available in InteliSys 2000 controller, it saves so much programming and commissioning time.

Bostjan Kokolj, Owner, Electrical s.p.

Additionally, the control system was equipped with ComAp’s InteliSCADA software, enabling accessible monitoring and control of the system via the plant’s main control room or remotely through the WebSupervisor cloud service. The result is a more reliable and efficient control system that enables the hydropower plant to comply with the latest standards.

gallery image
gallery image
gallery image
gallery image
gallery image
gallery image
gallery image
gallery image
gallery image
gallery image

ComAp Products Used in this Case Study

product image
InteliSys 2000
InteliSys 2000 sets an industry standard for advanced power generation control units. Tailored for various power generation applications, including gas gensets and cogeneration heat-power setups, it ensures cutting-edge performance with unrivalled PLC resources, modular expandability, and control algorithm flexibility. The InteliSys 2000 is developed in line with the latest market trends, grid code standards, and security protocols and comes with extensive communication capabilities.

product image
WebSupervisor
WebSupervisor is a cloud-based system designed for monitoring, data analysing and management of ComAp and third-party devices. It provides you with an easy overview of all your devices, their operational status, location and other important data, and alerts you in case of potential issues. Using its powerful reporting and analysis tools, you can optimise the revenue for your gen-set fleet, minimise downtime and reduce maintenance costs.

product image
InteliSCADA
InteliSCADA is an intuitive software tool that enables quick and simple creation and monitoring of complex Supervisory Control and Data Acquisition (SCADA) systems for controlling industrial processes. The tool can be used to monitor locally both simple and advanced paralleling sites, regardless of the type of application.


product image
InteliVision 5.2
InteliVision 5.2 is an easy-to-use remote colour display for ComAp controllers, for monitoring and control of single gen-set for various applications. This intuitive plug&play solution provides comprehensive visual overview of all engine data, monitoring information and trend history.

product image
Inteli AIN8
Module with 8 analogue Input channels and 1 RPM/Impulse Input.

product image
Inteli IO8/8
Binary Inputs/Outputs and analogue Outputs module.
