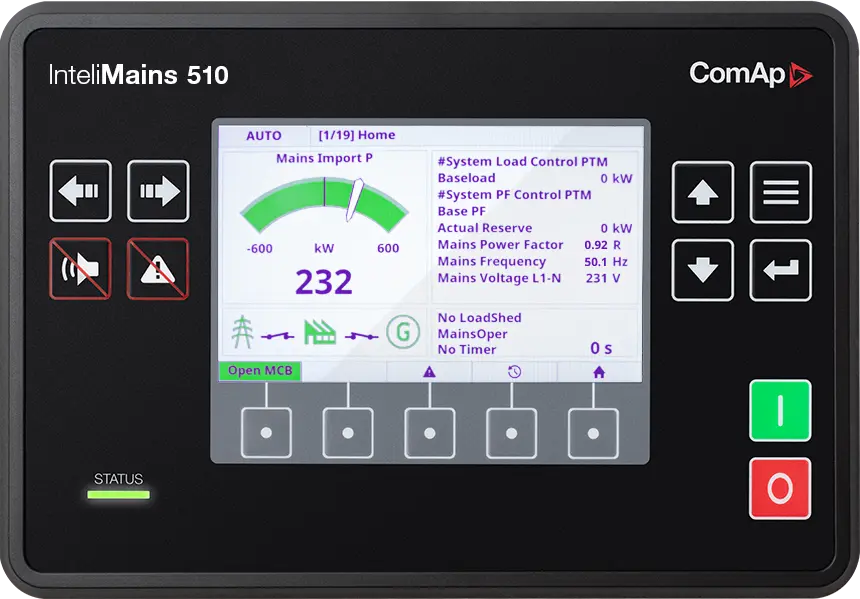

InteliMains 510

Order code: IM4510XXBAA

InteliMains 510 is the mains supervision controller used for synchronising set of gensets to the Mains/Utility or bus-tie-breaker operations, primarily intended for switchgear and targeting advanced and more complex applications.


The product is a direct successor of InteliMains NT-GC.


  • Cybersecurity by design
  • Large built-in PLC interpreter
  • Compatibility across the portfolio
  • Signal sharing across units
  • User defined protections and setpoints
  • Controller redundancy

    InteliMains 510

The InteliMains 510 offers:

  • Support for installations with the option for cooperation with up to 32 gen-sets/mains/tie controllers
  • Built-in PLCComAp has integrated Programable Logic Controller tightly with our standard line of controllers. This helps our customers to cut costs, minimise points of failure for advanced systems, and overcome any challenge that may occur. interpreter with the use of ComAp's free PLC Editor for easy configuration
  • AirGate 2.0ComAp’s controllers incorporate AirGate connection technology to make access to the internet as simple as possible.
    AirGate enables our controllers to connect to the internet using the existing network infrastructure, negotiating firewalls and VPN systems and removing the requirement for static and public IP addresses.
    for easy connection to your equipment remotely, without worrying about your asset’s IP address
  • Remote control and monitoring of your site operations with WebSupervisor, our cloud-based fleet management tool
  • Compatible load/Var sharing and power management with other ComAp solutions
  • A wide range of plug-in modules allowing you to easily extend the functionality of the controller
  • One hardware for more applications, enabling an easy switch between MCB, MGCB and BTB applications
  • Keeping your business and data as safe as possible, meeting the ISA 62443 level 2 - level 3 security requirements
  • Clear visualisation and overview of all important information on the built-in colour display
  • Faster and cost-effective operations with signal sharing over a CAN bus across a group of control units
  • User-defined protections and setpoints on top of default protection
  • Controller redundancy minimising solution downtime and ensuring the power isn’t compromised
  • Dynamic spinning reserveDynamic Spinning Reserve allows the system to react flexibly to changes in power produced by renewable energy sources. ComAp controllers can react to requested spinning reserve and keep the sufficient amount of gen-sets running to cover the drop-in output of the renewable source (e.g. when cloud cover is heavier). preventing supply drops in hybrid installations with PVs
  • Secure user management
  • Possibility to have a mains application in a gen-set controller







Accessories

Local support you can count on

Your operation depends on everything running smoothly. Our experts are here to make sure of that. We offer:

  • 24-hour support on working days
  • Local contacts in 179 countries
  • Remote and in-person trainings and a range of support materials
  • Expert consultation, troubleshooting, and much more
