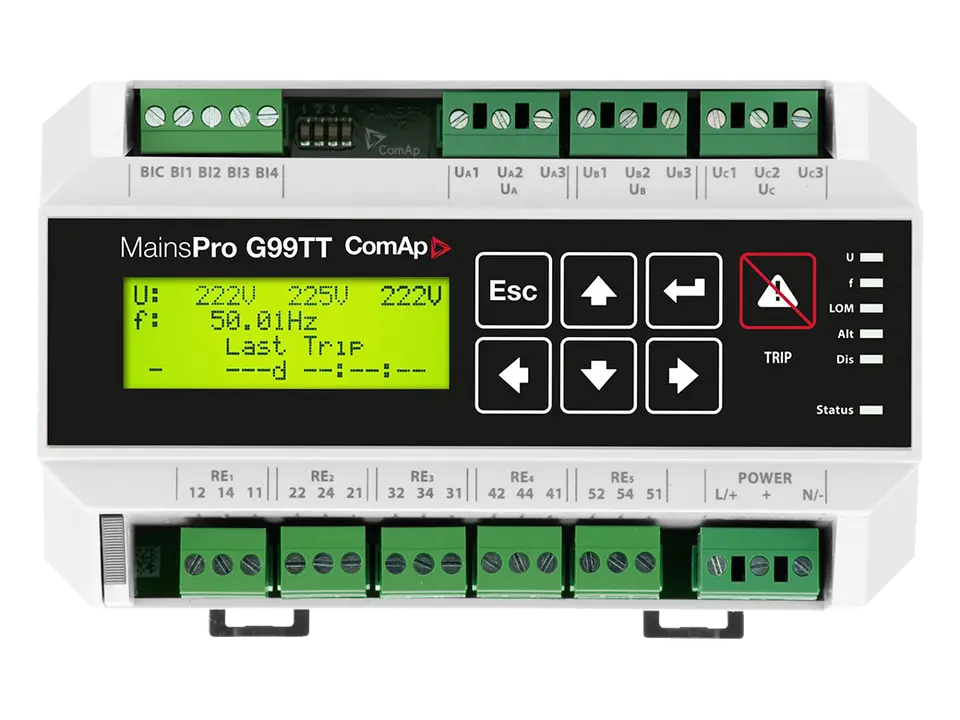

MainsPro G99TT with seal

Order code: MP1G99TTAAB

MainsPro G99TT is an easy-to-install mains protection relay for parallel-to-mains applications. It reliably monitors voltage, frequency and loss of mains protections to safeguard both the distribution network and the generators. This protection relay is designed for installations with renewable energy sources such as photovoltaic plants, gen-sets, cogeneration units, and microturbines.

  • Reliable measurements evaluation
  • Full compliance with ENA EREC G99
  • Secured protection settings

Compliant with international grid codes: ENA EREC G99, IEC 60255, G98, G99, IEn NR 005/2012 and VDE-AR-N 4105

    MainsPro G99TT with seal

The MainsPro G99TT is a G99 type tested mains protection relay. The G99 functions were added to ensure compliance with the European Requirements for generators which were adopted by the United Kingdom in the GB Distribution and Grid Codes list.  The main change is moving from Vector to ROCOF (Rate of Change of Frequency) protection to detect how quickly the system frequency is changing by continuously sampling the frequency of mains voltage. The protection settings of the product are set during manufacturing, and some of them can be changed only by authorised personnel.

The MainsPro G99TT offers:

  • Wide power supply and measurement range
  • Easy set-up via a user-friendly interface
  • Simple wiring with detachable connectors
  • Suitable for standard DIN rail installation
  • Advanced frequency, voltage and loss of mains protections
  • Event-based history for troubleshooting and incident management
  • Integrated mechanical lock for securing the defined settings
  • Breaker failure protection and watchdog feature
  • Resistance to frequency jumps
